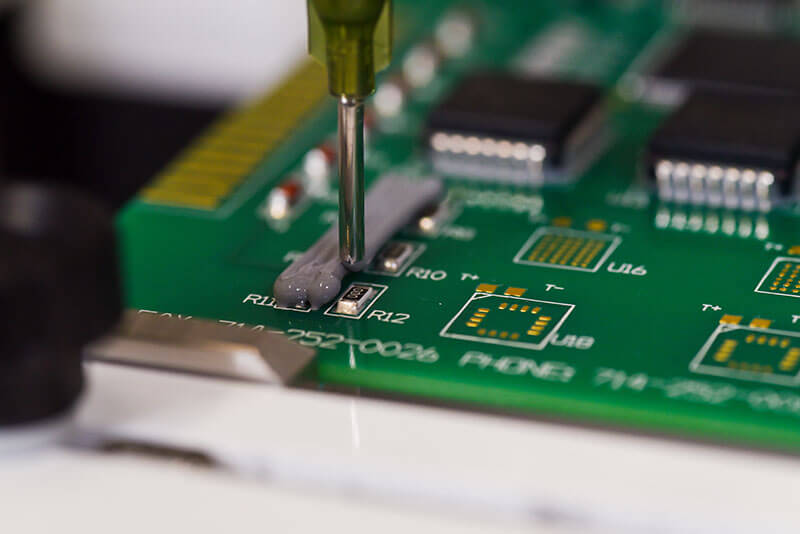

  • SM4 Application Shot

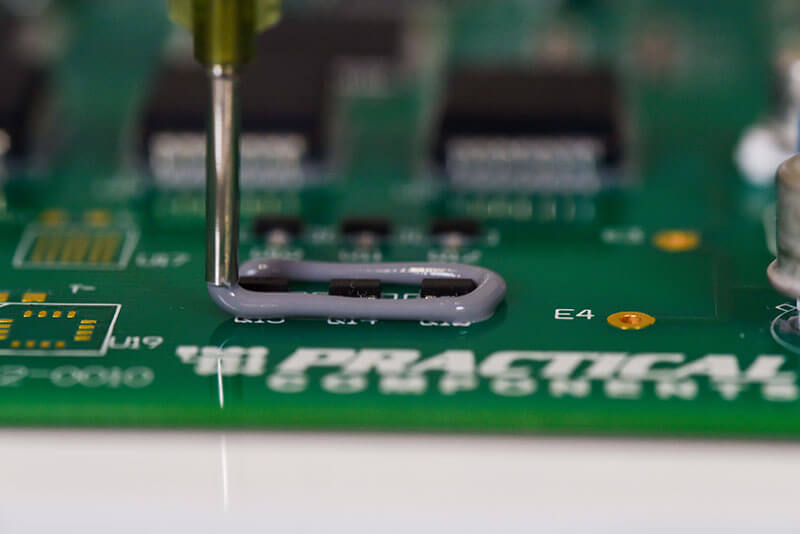

  • SM4 Application Shot

FC100 Series

Dam & Fill, Dispensing, Encapsulation & Glob Top, Gasketing, Masking, Staking

Stainless Steel – Front Closing High-Pressure Valve

The FC100 is a versatile dispensing valve for single-component bead, dot, potting or encapsulation projects. The FC100 features a lightweight, compact design that makes it an ideal choice for any automated or handheld process.

The FC100 has many integrated features including:

  • 300 series stainless steel fluid body for superior material compatibility
  • Flow adjustment with lock nut
  • Divorced valve design prevents material contamination of the air section
  • Reversible valve seat
  • Spring-assisted valve closure for reliable cycle stops
  • Compatible with all Luer-Lok™ needle tip designs
  • High inlet pressure rating allows for processing of viscous chemistries

FC100-MC
Stainless Steel – Front Closing High-Pressure Valve, Micrometer

Improving upon the traditional FC100 valve design, the FC100-MC features a micrometer flow adjustment that makes fine-tuning of your process easier than ever. The FC100-MC has all of the integrated features of the FC100 as well as a micrometer flow adjustment with lock ring.

Also available for purchase are the FC100 and FC100-MC Spare Parts Kits which include all the necessary replacement parts for your valve.

Resources

Buy Now
Jump to videos

Product Manuals

Datasheets

Case Studies

Brochures

Applications

Dam & Fill

A two-step process of first dispensing a high viscosity fluid around the perimeter of a device or electronic circuitry, and then dispensing a low viscosity fluid within the perimeter to fully encase the components. The dam can be applied as a single or multi-layer bead depending on the target fill height required.

Dam & Fill Details

Dispensing

Dispensing can extend across numerous industries and applications that require dosing in an accurate and controlled manner.  PVA's award winning valves and pumps are available to dispense a broad spectrum of chemistries to meet the requirements of your most demanding applications.

Dispensing Details

Encapsulation & Glob Top

Applying an epoxy or silicone-based fluid that completely covers a defined area around a flip chip or wire bonded component. This provides mechanical shock and vibration stability, as well as environmental protection from moisture and foreign objects.

Encapsulation & Glob Top Details

Gasketing

Also known as "form-in-place gasketing," this application dispenses one or two-part liquids into a groove or onto a flange that will cure to form a seal against liquids and gases. This automated process eliminates the task of assembling a die cut or pre-made gasket. Additionally, geometries can easily be modified for other design.

Gasketing Details

Masking

Masking is the process of applying a protective layer to a PCB’s electronic components. Fluid and gel-based solutions are one of the most flexible options available as they do not come in pre-designed shapes.

Masking Details

Staking

Staking is an application that involves dispensing a bead of adhesive to bridge a component and a circuit board surface to create an anchor for additional support.

Staking Details
